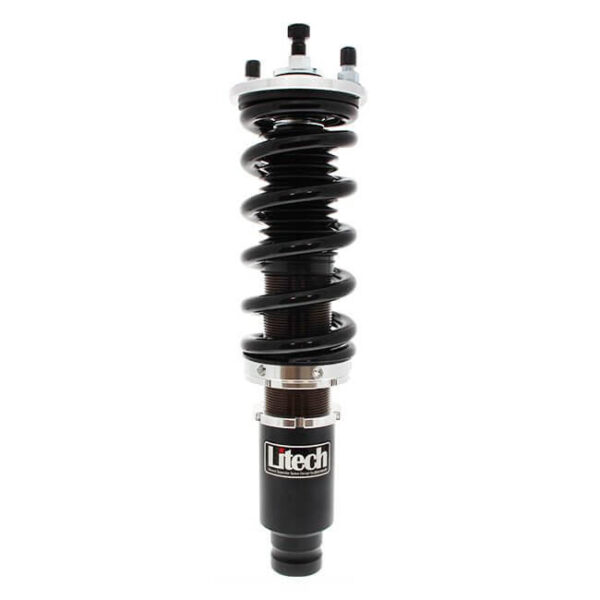

SA3001-L-PP (upgrade) – NeoMAX Litech for ASTON MARTIN VANTAGE 2009-2019

Aluminum Shock Suspension System

• 40 levels of dampening adjustability.
• IP F.A. 20W damper oil.
• Mono-tube shock design.
• T7075 aluminum alloy shock for extreme light weight and better heat transfe properties.
• JIS G3445-STKM13C(DIN2393-ST44-2)carbon steel 52mm diaseamless tube.
• 44mm linear characteristic internal piston.
• Cold-bent springs made from high strength SAE9252 steel.
• Lower bracket height adjustability prevent the need to adjust the spring perch, offering the maximum shock-absorbing travel.
• Powder painted steel lower bracket can match all design of brake line and ABS line holder, easy for intalling.

Specifications:

Topmount Rear -> Pillowball non-adjustable topmount
Spring rate Rear -> 12K
Spring rate Front -> 10K
Welding needed? ->
Rear Coilover Design -> Integrated spring
Topmount Front -> Pillowball non-adjustable topmount
Front Coilover Design -> Integrated spring
