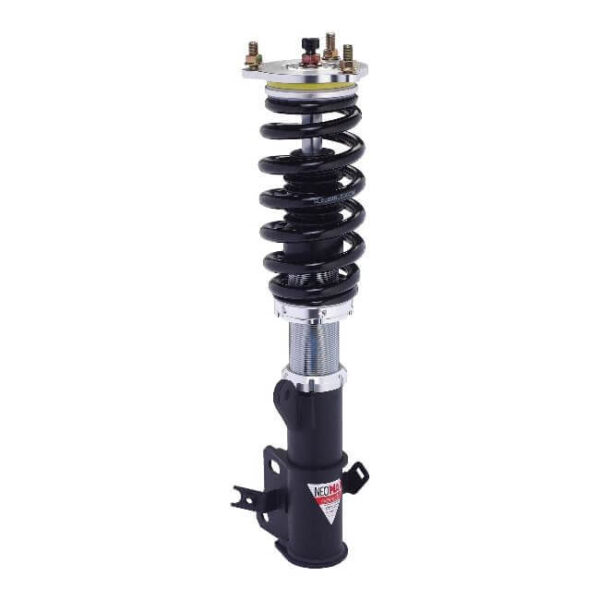

SB1025-N – NeoMAX for BMW Z4 (E89) 2009-2016

Street Tuned Suspension System

• 24 levels of dampening adjustability.
• IP F.A. 5W damper oil.Mono-tube shock design.
• JIS G3445-STKM13C (DIN2393-ST44-2) carbon steel 52mm diaseamless tube.
• 44mm linear characteristic internal piston.
• Cold-bent springs made from high strength SAE9252 steel.
• Lower bracket height adjustability prevent the need to adjust the spring perch, offering the maximum shock-absorbing travel.
• Powder painted steel lower bracket can match all design of brake line and ABS line holder, easy for installing.

Specifications:

Topmount Rear -> Rubber non-adjustable topmount
Spring rate Rear -> 10K
Spring rate Front -> 12K
Welding needed? -> No
Rear Coilover Design -> Seperated spring
Topmount Front -> Rubber non-adjustable topmount
Front Coilover Design -> Integrated spring
