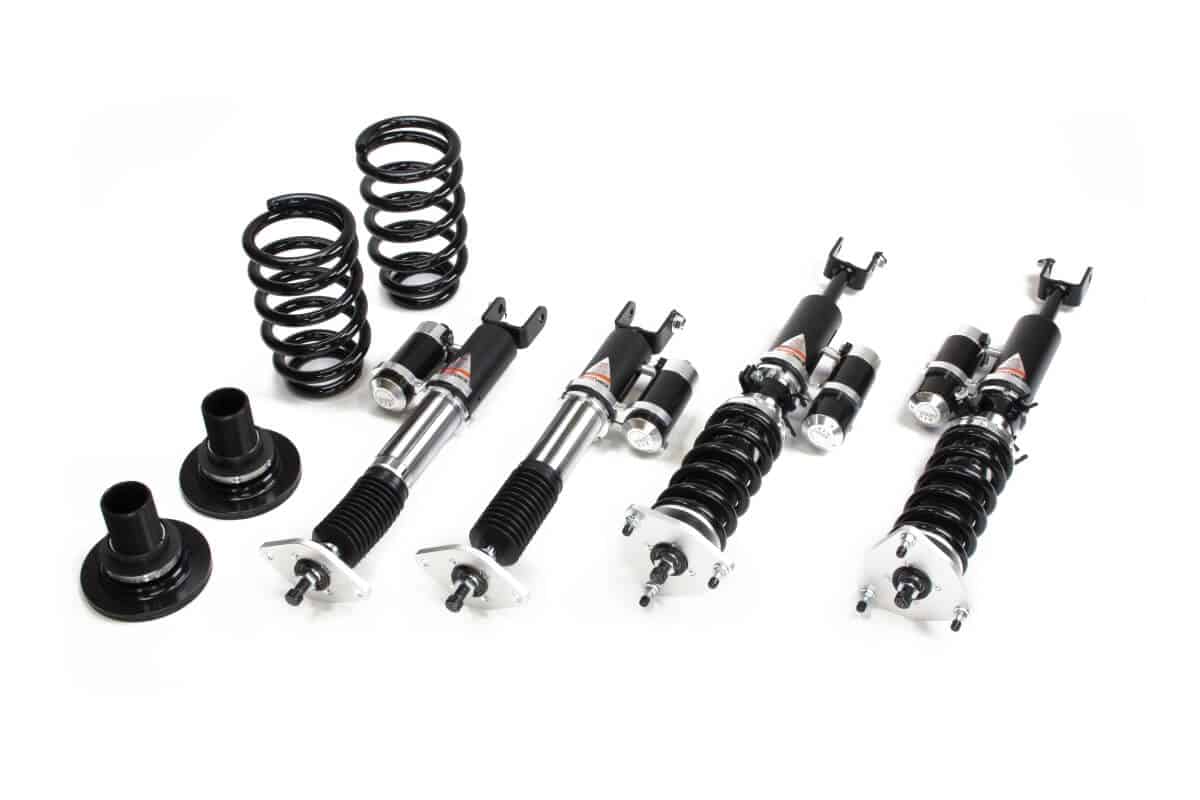

SM3021-2W – NeoMAX 2-Way for MERCEDES BENZ M Class (W166) 2012-2015

Super Racing Suspension System

• 40 levels (rebound) x 24 levels (compression) of dampening adjustability.
• IP F.A. 20W damper oil.
• Mono-tube shock design.
• JIS G3445-STKM13C(DIN2393-ST44-2)carbon steel 52mm diaseamless tube.
• 44mm linear characteristic internal piston.
• Cold-bent springs made from high strength SAE9252 steel.
• Lower bracket height adjustability prevent the need to adjust the spring perch, offering the maximum shock-absorbing travel.
• Powder painted steel lower bracket can match all design of brake line and ABS line holder, easy for intalling.

Specifications:

Topmount Rear -> Rubber non-adjustable topmount
Spring rate Rear -> 17K
Spring rate Front -> 16K
Welding needed? -> No
Rear Coilover Design -> Seperated spring
Topmount Front -> Pillowball non-adjustable topmount.
Front Coilover Design -> Integrated spring
