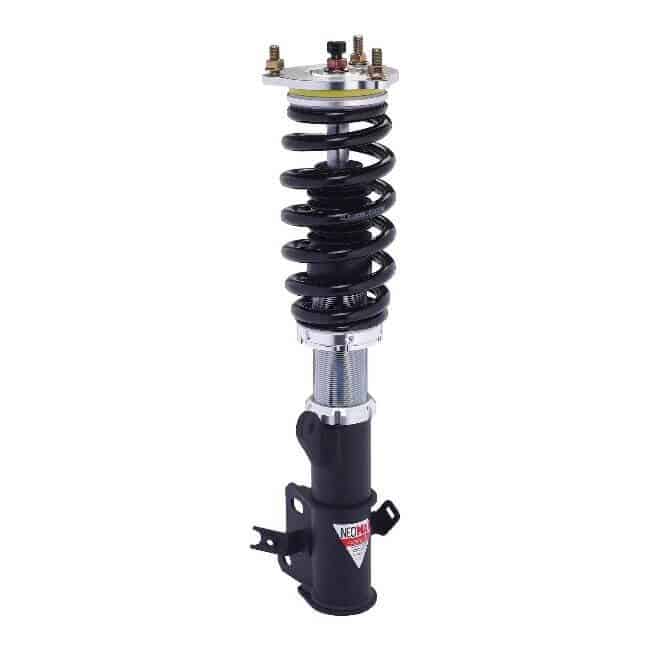

SV1015-N-CP (upgrade) – NeoMAX for VW GOLF 6 1.6 2009-2013

Street Tuned Suspension System

• 24 levels of dampening adjustability.
• IP F.A. 5W damper oil.Mono-tube shock design.
• JIS G3445-STKM13C (DIN2393-ST44-2) carbon steel 52mm diaseamless tube.
• 44mm linear characteristic internal piston.
• Cold-bent springs made from high strength SAE9252 steel.
• Lower bracket height adjustability prevent the need to adjust the spring perch, offering the maximum shock-absorbing travel.
• Powder painted steel lower bracket can match all design of brake line and ABS line holder, easy for installing.

Specifications:

Topmount Rear -> No topmount included
Spring rate Rear -> 5K
Spring rate Front -> 9K
Welding needed? ->
Rear Coilover Design -> Seperated spring
Topmount Front -> Pillowball adjustable topmount
Front Coilover Design -> Integrated spring
