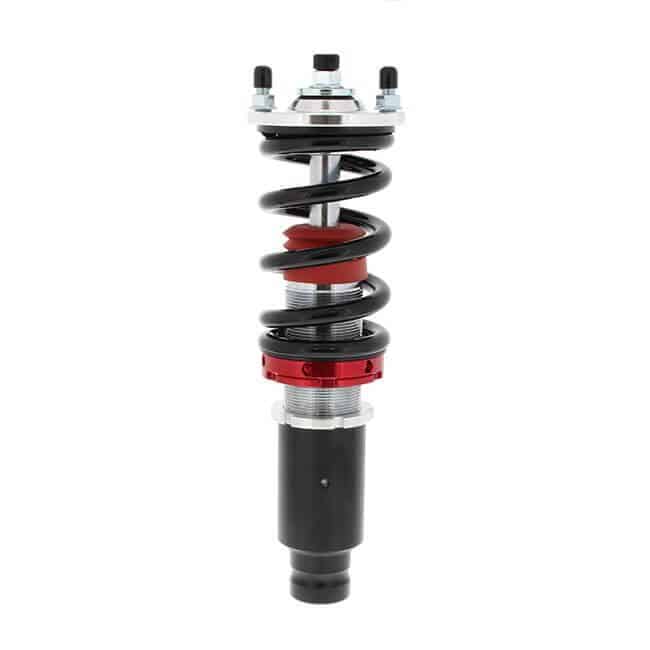

SV1019-SL-CP (upgrade) – NeoMAX Super Low for VW PASSAT (B6/B7) 2005-2015

Super Low Suspension System

• 24 levels of dampening adjustability.
• IP F.A. 5W damper oil.
• Mono-tube shock design.
• JIS G3445-STKM13C (DIN2393-ST44-2) carbon steel 52mm dia seamless tube.
• 44mm linear characteristic internal piston.
• Cold-bent springs made from high strength SAE9252 steel.
• Lower bracket height adjustability prevents the need to adjust the
  spring perch, offering the maximum shock-absorbing travel.
• Powder painted steel lower bracket can match all design of brake line & ABS line holder, easy for installing.
• Shorter shocks, springs and lower brackets combination provide the best super low stance.

Specifications:

Topmount Rear -> No topmount included
Spring rate Rear -> 8K
Spring rate Front -> 10K
Welding needed? ->
Rear Coilover Design -> Seperated spring
Topmount Front -> Pillowball adjustable topmount
Front Coilover Design -> Integrated spring
